Product Introduction
Naming Convention
| Location | Name | Explanation |
| 1 | StaX | Commercial & Industrial Stacked Energy Storage System |
| 2 | M | Moduler mounting |
| 3 | 50 | Inverter power is available in 29.9kW, 30kW and 50kW. |
Product Features
The Lithium Iron Phosphate (LFP) batteries produced by AlphaESS feature long life and high reliability, meeting the application needs of various energy storage systems.
The system is designed with a highly modular structure, making it easy to assemble, transport, and maintain.
The system uses real-time balancing technology to ensure high consistency between battery modules.
The system is designed with a detachable structure, compact and flexible, facilitating installation and testing, and meeting application requirements in different working environments and types.
The system features advanced thermal management technology, allowing it to operate within the optimal temperature environment.
The system has local and remote monitoring and control functions.
Through communication between the BMS, PCS, EMS, and monitoring system, the system enables flexible dispatch of the power system.
Product Composition

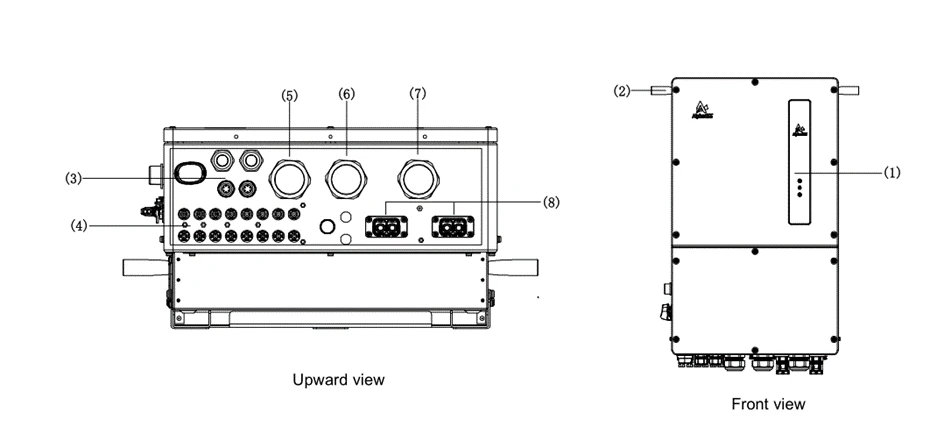

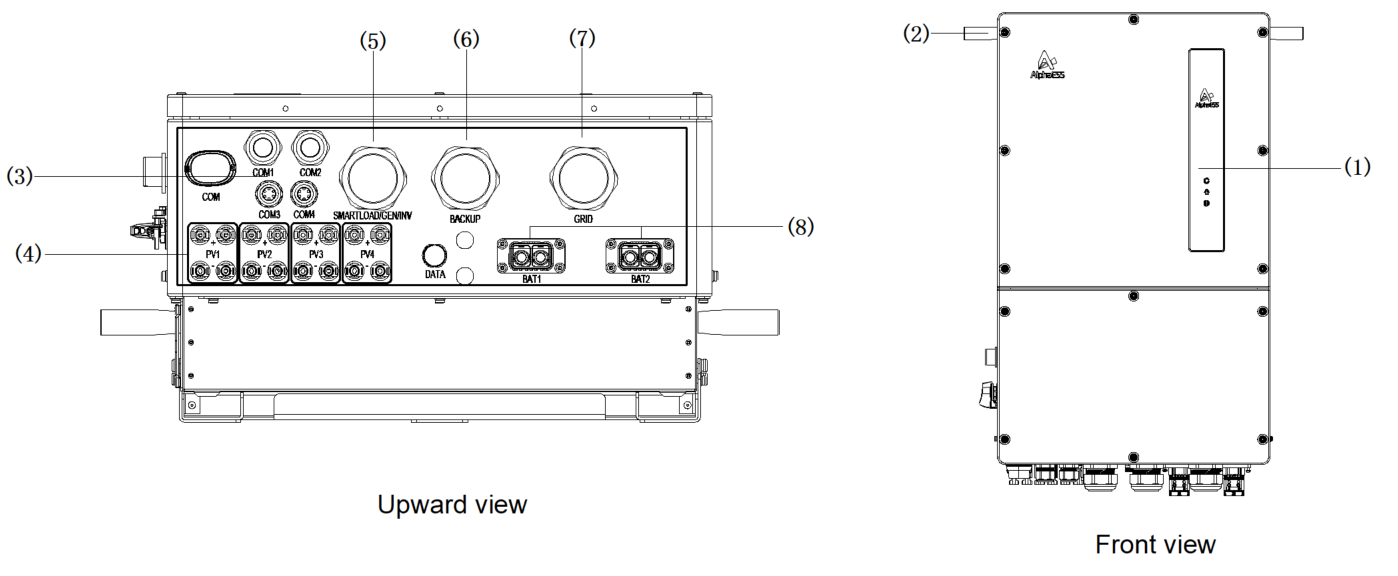

PCS
| Position | Designation |
| 1 | Indicator |
| 2 | Handle |
| 3 | Communication port |
| 4 | PV power port |
| 5 | DG power port |
| 6 | Backup power port |
| 7 | Grid power port |
| 8 | Battery input port |

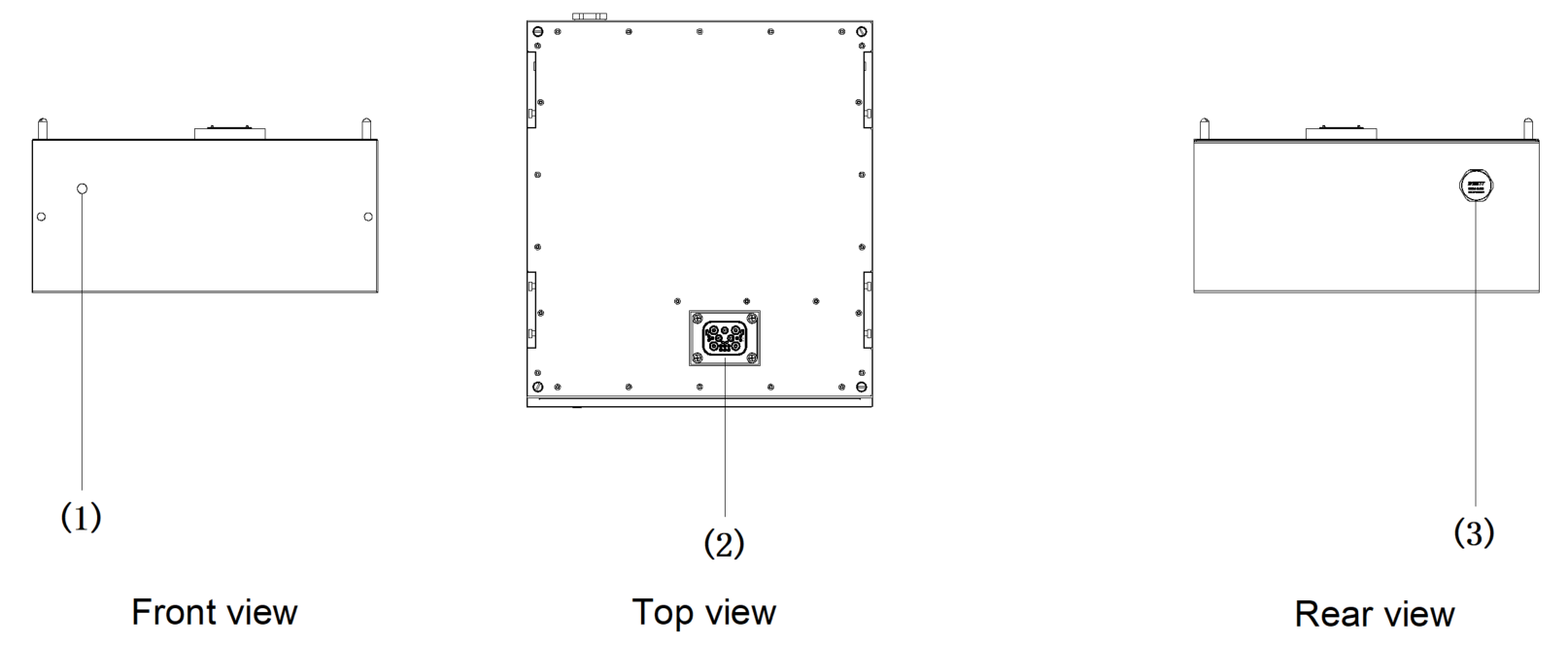

1.1.2 Battery
| Position | Designation |
| 1 | Indicator |
| 2 | Power and communication connectors |
| 3 | Relief valve |

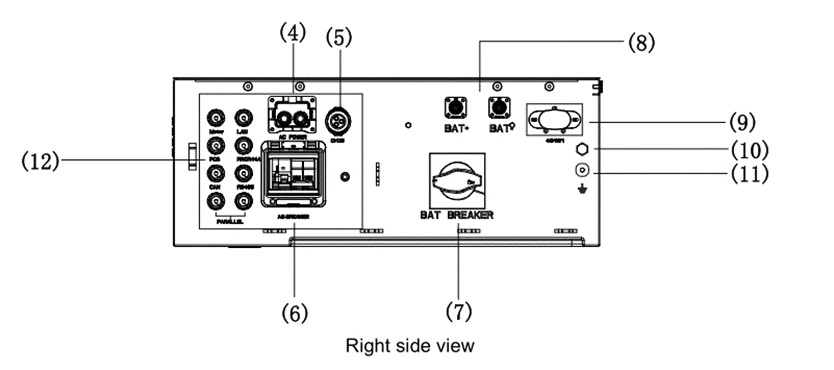

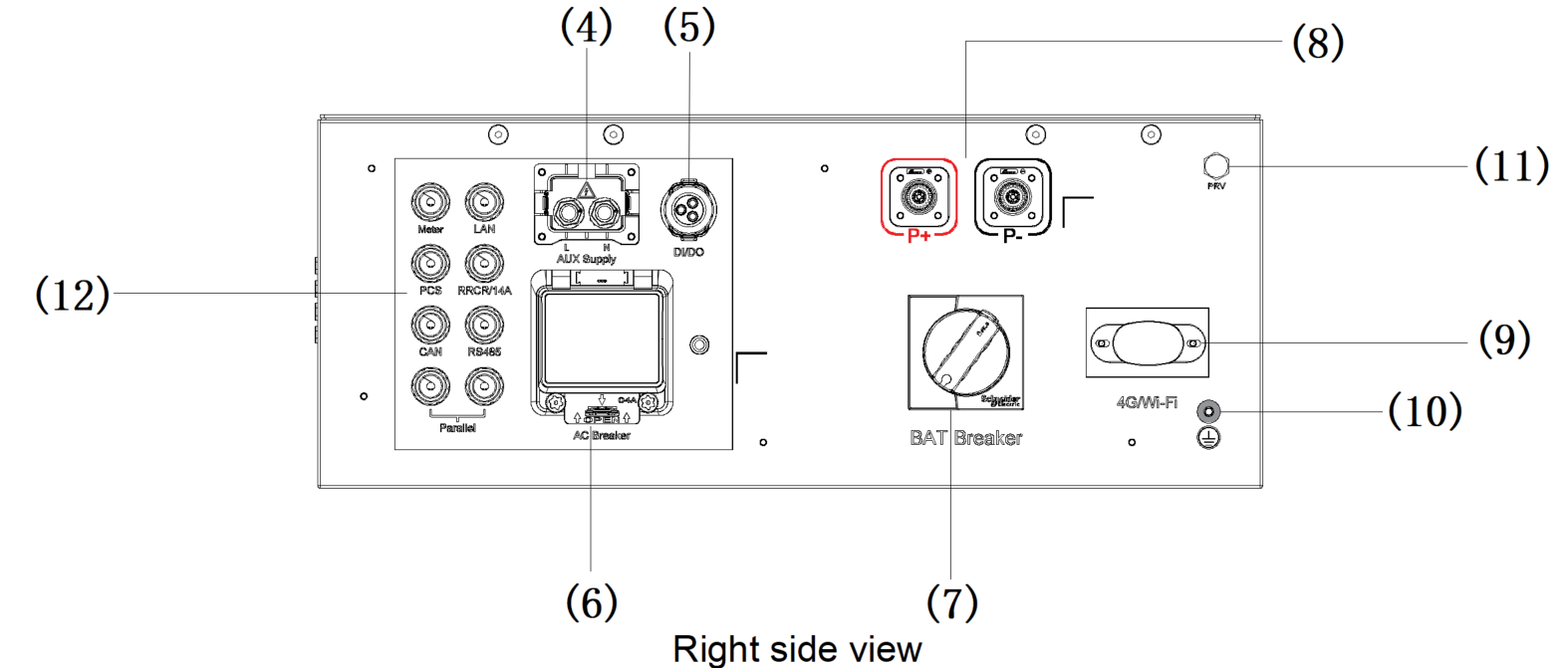

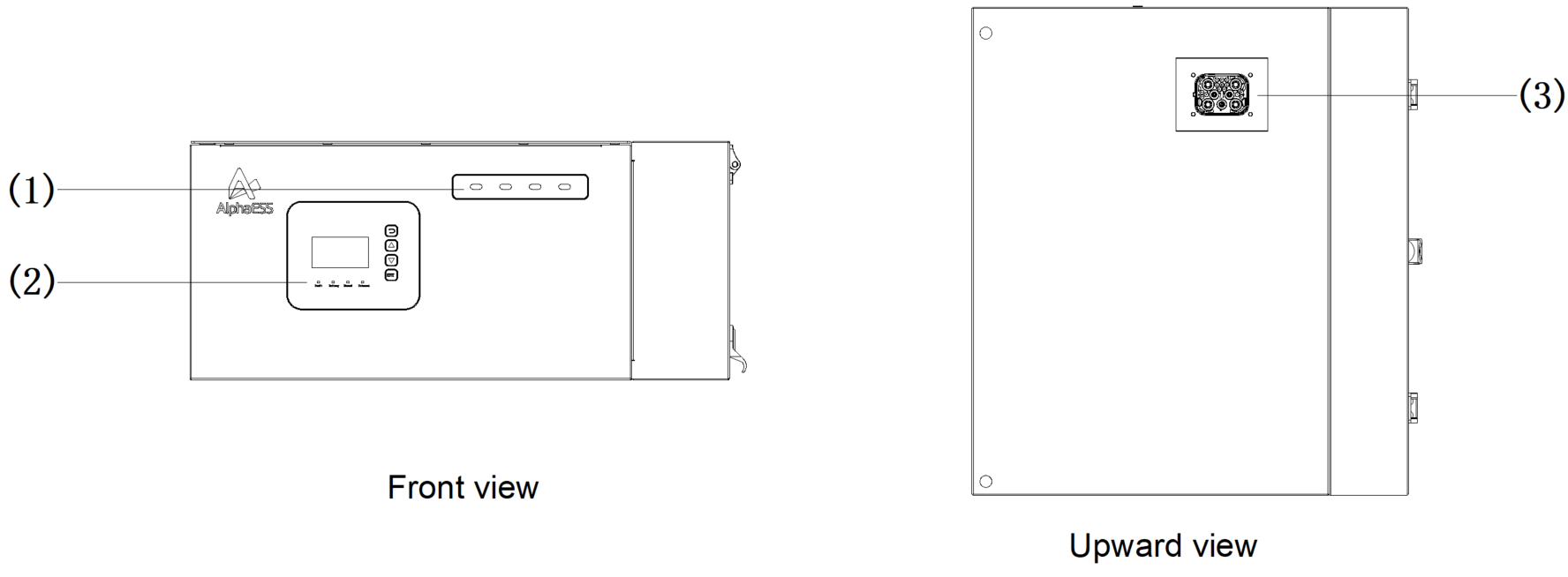

1.1.3 HV Box
| Position | Designation |
| 1 | SOC indicator |
| 2 | LCD |
| 3 | Power and communication connectors |
| 4 | AC aux power input |
| 5 | DI/DO input |
| 6 | AC breaker |
| 7 | Battery breaker |
| 8 | Battery output |
| 9 | Wifi dongle input（4G dongle optional） |
| 10 | Reluef valve |
| 11 | Grounding point |
| 12 | Communication port（RJ45） |
Description of External Indicator Functions

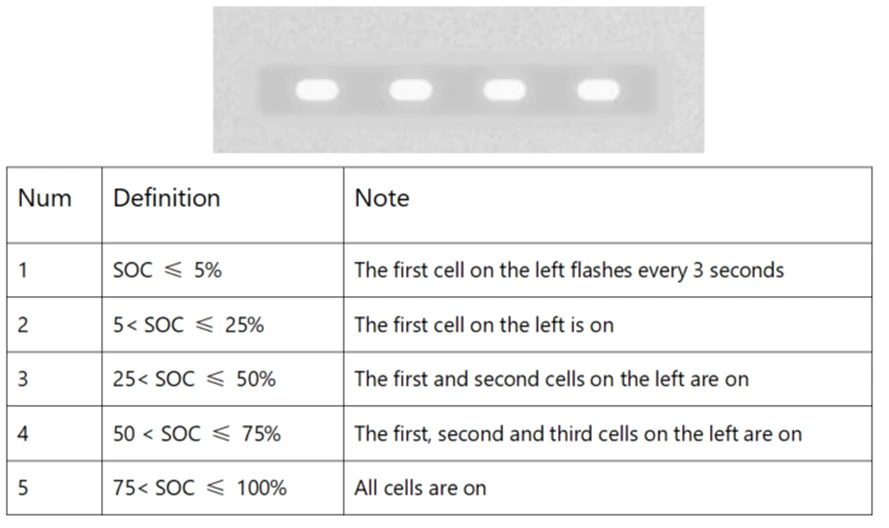

Battery Side

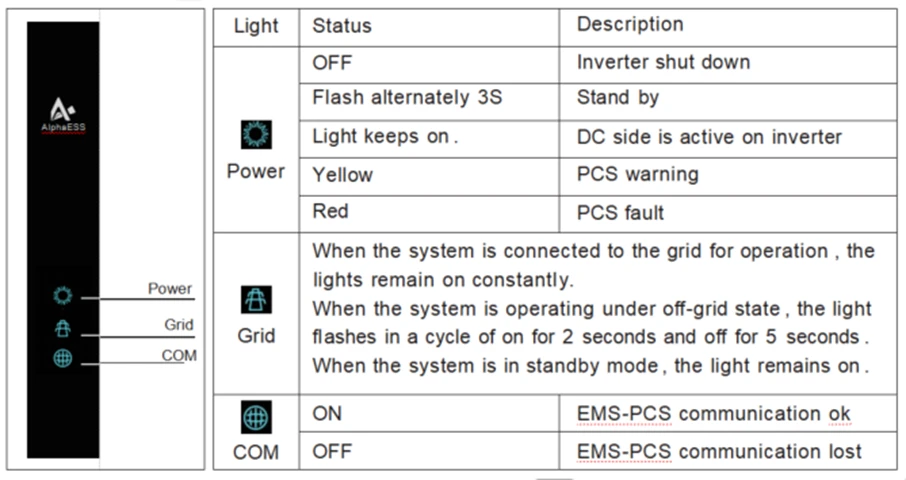

PCS Side
